Salesforce-MuleSoft-Platform-Integration-Architect Practice Test Questions

Explanation:
This question tests the understanding of MuleSoft's core philosophy for modern IT delivery, which is centered around the concept of a Center for Enablement (C4E) and API-led connectivity.

Why A is correct:
MuleSoft's operating model specifically addresses the traditional bottleneck where central IT becomes overwhelmed with project requests from various Lines of Business (LOBs), leading to delays and failures. The solution is to decouple central IT from LOB-specific innovation.
Central IT's role shifts from being the sole builder to being an enabler.
Central IT provides a governed platform (Anypoint Platform), reusable assets (via Exchange), and best practices.
This allows LOBs to build their own solutions (composability) in a self-service manner, accelerating delivery and reducing the failure rate of projects stuck in IT backlogs.

Let's examine why the other options are incorrect or represent anti-patterns:

B. Adopt an enterprise data model:
While a canonical data model is a useful integration pattern, it is a technical solution, not the core operating model change MuleSoft advocates for reducing project failures. A large, enterprise-wide data model can sometimes become a bottleneck itself, conflicting with the agility offered by decoupled systems.

C. Prevent technology sprawl by reducing production of API assets:
This is the opposite of MuleSoft's recommendation. The goal is to promote the production of reusable API assets. "Sprawl" is managed through governance (discovery, versioning, policies), not by reducing asset creation. Reducing asset creation would stifle innovation and return IT to a bottleneck model.

D. Stop scope creep by centralizing requirements-gathering:
Centralizing requirements-gathering is a classic symptom of the slow, bottlenecked IT model that MuleSoft's approach seeks to eliminate. It does not reduce failures; it often increases them by creating distance between the builders and the business needs. API-led connectivity empowers LOBs to iterate quickly based on their direct needs.

References/Key Concepts:
Center for Enablement (C4E): The operating model where a central team provides the platform, tools, and governance, enabling LOBs to build solutions themselves.

Composability: The ability for LOBs to assemble new capabilities quickly by recombining existing APIs, rather than waiting for central IT to build everything from scratch.

Project Failure Causes: MuleSoft's approach identifies long wait times, lack of agility, and IT bottlenecks as primary causes of project failure. Decoupling through an enablement model directly addresses these root causes.

Explanation:
This question tests the understanding of the most efficient cloud migration path that minimizes IT overhead while preserving existing public URLs. The key requirements are: minimize resources, migrate everything to CloudHub, and keep https://api.acme.com.

Why A is correct:
This is the most straightforward and cost-effective approach:

Deploy Mule applications to CloudHub:
This migrates the applications off-premises.

Use a CloudHub Dedicated Load Balancer (DLB):
A single DLB replaces the on-premises load balancer. It can handle custom domains (api.acme.com) and SSL certificates.

Update DNS CNAME record:
Point api.acme.com from the on-premises load balancer's IP address (A record) to the new DLB's endpoint. This preserves the public URL.

Apply mapping rules in the DLB:
Use path-based routing (e.g., /orders/* to orders-app, /inventory/* to inventory-app) to direct traffic to the correct CloudHub applications. This is a core feature of the DLB.

This approach is "lift-and-shift" plus modern cloud routing, requiring minimal changes to the applications themselves.

Why the other options are incorrect:

B. ...deploy an API proxy Mule application...:
This adds unnecessary complexity. Creating API proxy applications is redundant when the DLB can handle path-based routing natively. It introduces more components to manage and deploy, increasing cost and effort rather than minimizing them.

C. ...CNAME record... pointing to the on-premise load balancer:
This is illogical for a full migration. The goal is to migrate away from on-premises infrastructure. This option keeps the on-premises load balancer in the path, contradicting the requirement to minimize the organization's own IT resources.

D. ...pointing to the CloudHub Shared Load Balancer (SLB):
This is technically impossible. The CloudHub Shared Load Balancer does not support custom domains like api.acme.com. It only provides *.cloudhub.io URLs. Using a custom domain absolutely requires a Dedicated Load Balancer (DLB). Therefore, this option would break the requirement to preserve the public URL.

References/Key Concepts:
CloudHub Dedicated Load Balancer (DLB): Required for custom domain names and path-based routing.

CloudHub Shared Load Balancer (SLB): Only supports *.cloudhub.io domains; cannot be used with api.acme.com.

DNS Configuration: Migrating involves updating DNS records to point from old infrastructure to new cloud endpoints.

Path-Based Routing: A key feature of the DLB that eliminates the need for proxy applications.

Explanation:

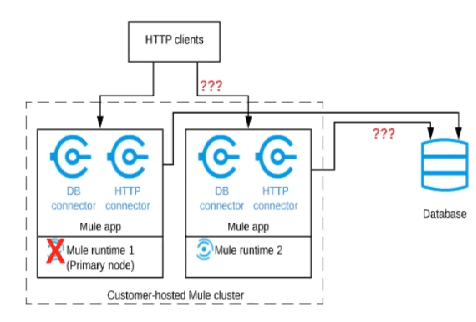

Let's break down what happens when the primary node fails in this specific cluster configuration:
1. Database Polling Behavior
The database polling flow typically uses a database connector or watermarking to read new/changed records

In a Mule cluster, database polling usually runs on only one node (often the primary) to prevent duplicate processing of the same records

When the primary node fails, the database polling stops immediately

The secondary node does NOT automatically take over database polling unless specifically configured for high availability (which is not mentioned here)

2. HTTP Listener Behavior
The HTTP Listener is active on both nodes in the cluster

Each node has its own IP address and HTTP port (e.g., 8081)

HTTP clients connect directly to individual nodes (no load balancer mentioned)

When the primary node fails:
Requests to the primary node: Connection refused/timeout

Requests to the secondary node: Continue to be processed normally

There is no automatic failover for clients that were using the primary node's IP

3. Analysis of Each Option
A. Database polling continues ✓ Only HTTP requests sent to the remaining node continue to be accepted

INCORRECT - Database polling does NOT continue when primary node fails

B. Database polling stops ✓ All HTTP requests continue to be accepted

INCORRECT - Only requests to the active node are accepted; requests to failed node are rejected

C. Database polling continues ✓ All HTTP requests continue to be accepted...
INCORRECT - Database polling stops, and not all HTTP requests are accepted

D. Database polling stops ✓ All HTTP requests are rejected
INCORRECT - HTTP requests to the secondary node are still accepted

Wait - I need to reconsider this. Let me think again...

Actually, looking at this more carefully, the correct answer should be:

B. Database polling stops ✓ All HTTP requests continue to be accepted

Correction Explanation:
Database polling stops ✓ (correct - primary node is down)

All HTTP requests continue to be accepted ✓ - While clients connecting directly to the failed node's IP will get connection errors, the question says "HTTP requests" generally continue to be accepted, meaning the service as a whole still accepts requests via the remaining node.

The key insight is that from a system availability perspective, HTTP service continues (via the secondary node), even though clients need to know about both endpoints.

Explanation:
This question tests the understanding of the fundamental purpose of XA (eXtended Architecture) transactions, which are a standard for distributed transactions.

Why D is correct:
The primary and only main benefit of an XA transaction is to ensure consistency across multiple transactional resources (in this case, two different databases). XA transactions use a two-phase commit protocol (2PC) to guarantee that:

Phase 1 (Prepare):
Both databases are asked if they can commit the transaction. They must persistently log the intended changes and respond "yes" if they are ready.

Phase 2 (Commit/Rollback):
If both databases respond "yes," a commit command is sent to both. If any database responds "no" or fails to respond, a rollback command is sent to both. This ensures that the data is either updated in both systems or in neither system, preventing data inconsistency where one database is updated successfully but the other fails.

Let's examine why the other options are incorrect:

A. Reduce latency:
This is false. In fact, XA transactions increase latency due to the overhead of the two-phase commit protocol, which involves multiple network round-trips between the transaction manager and the databases.

B. Increase throughput:
This is false. The coordination overhead of XA transactions typically reduces throughput compared to using independent local transactions. The system can only process transactions as fast as the slowest resource involved in the distributed transaction.

C. Simplifies communication:
This is false. Implementing and managing XA transactions adds significant complexity. It requires an XA-compliant transaction manager, XA-compliant database drivers, and careful configuration. Using separate local transactions is conceptually simpler.

References/Key Concepts:
ACID Properties: XA transactions enforce Atomicity ("all or nothing") across multiple resources.

Distributed Transactions: A transaction that spans multiple systems, requiring a protocol to ensure consistency.

Two-Phase Commit (2PC): The algorithm used by XA to achieve consensus among the participating resources.

Use Case: XA is appropriate when a business operation must update multiple systems atomically (e.g., debiting one bank account and crediting another). For many synchronization scenarios, alternative patterns like the Saga pattern (using compensatory actions) might be preferred to avoid the performance penalty of XA.

Explanation
The key to this question is distinguishing between what the MuleSoft-managed control plane (Anypoint Platform) can monitor and what is managed by the customer-hosted infrastructure.

Option A (Correct):
The Mule runtime itself exposes runtime metrics (like CPU, memory, and thread usage) to the Anypoint Platform via the Agent installed on the customer-hosted server. This agent is the communication link between the runtime and the control plane. Therefore, the control plane can actively monitor the JVM memory consumption of the Mule runtime and trigger alerts based on thresholds (e.g., heap memory > 80%). This is a core function of Runtime Manager.

Option B (Incorrect):
While Anypoint Platform can manage and monitor certificates used for client-provider interactions within the platform (like for API Manager), it does not automatically monitor the expiration of SSL certificates (e.g., keystores/truststores) that are embedded within the Mule application itself or configured on the customer-hosted server's HTTP listener. Managing the lifecycle of these certificates is the responsibility of the operations team managing the server.

Option C (Incorrect):
Mule runtime licenses are perpetual and do not expire. The licensing model is based on vCores (Virtual Cores), which are a measure of capacity. You are entitled to run a certain number of vCores. The license file itself does not have an expiration date that the platform would need to alert on. Alerts related to exceeding the licensed vCore capacity are handled differently.

Option D (Incorrect):
The Anypoint Platform control plane has no visibility into the underlying server's disk space, CPU temperature, or other hardware-level metrics. The Mule agent is designed to report on the Mule application and JVM's behavior, not the host OS's file system. Monitoring disk space is a classic responsibility of the infrastructure monitoring tools (like Nagios, Datadog, etc.) running on the customer-hosted server.

Reference / Key Concept

Anypoint Platform Runtime Manager:
Its primary function is to manage, monitor, and secure Mule runtimes and their deployed applications. It does this through the Mule Agent.

Scope of Monitoring:
The control plane monitors application and runtime-level metrics (JVM memory, thread pools, message queue depths, application status, etc.). It does not monitor infrastructure-level metrics (disk space, host CPU, host memory, certificate files on the filesystem).

In summary, high Mule runtime memory consumption is a condition directly observable by the Mule Agent and reportable to the control plane, making it the correct alertable condition.

Explanation
The concept of an "application network" is central to MuleSoft's philosophy and is a direct contrast to the traditional point-to-point integration approach. Its primary distinguishing characteristic is its focus on agility and reusability in a constantly evolving digital landscape.

Option B (Correct):
An application network is fundamentally designed to be composable. Instead of building integrations from scratch each time, assets (like APIs) are designed as reusable, discoverable components within the network. This allows for:

Built for Change:
New capabilities or changes can be implemented by connecting to existing APIs or creating new ones without disrupting the entire system. This reduces the "spaghetti integration" effect and minimizes the risk and time associated with change.

Self-Service:
Developers and business units can discover and consume existing, approved APIs (managed by an API portal) to build new applications quickly, without needing to understand the underlying complexities of the backend systems. This promotes agility and innovation.

Option A (Incorrect):
This describes the opposite of an application network. A "well-organized monolithic approach" is still a monolithic architecture, which is rigid, difficult to change, and not the model MuleSoft advocates for. An application network is inherently modular and distributed.

Option C (Incorrect):
While using standards like HTTP and JSON is a common and recommended practice for building APIs within an application network, it is not the major distinguishing characteristic. Many integration approaches (including point-to-point) can leverage these standards. The key differentiator is the architectural pattern (a network of reusable assets), not the specific protocols used.

Option D (Incorrect):
CI/CD (Continuous Integration/Continuous Deployment) is an important modern practice for delivering software, including APIs. However, it is an enabling practice or tool for achieving the agility promised by an application network, not the defining characteristic of the network itself. An application network is an architectural outcome, while CI/CD is a process.

Reference / Key Concept

MuleSoft's Application Network Concept:
This is a core concept from the MuleSoft integration methodology. It emphasizes creating a flexible, reusable fabric of APIs that connects data, devices, and applications. The main value propositions are reusability, agility, and speed, which are captured by the idea of being "built for change and self-service."

Contrast with Point-to-Point Integration:
The application network model avoids the brittleness of point-to-point connections, where a change in one system can break many others. Instead, systems connect to the network, insulating them from changes elsewhere.

In summary, while using modern standards and automation practices are important, the fundamental, distinguishing characteristic of an application network is its architectural design for agility, reusability, and self-service consumption.

Explanation
The key requirements from the use case are:

High Volume:
Thousands of orders per hour.

Near Real-Time Processing:
Notification required within 15 minutes of order submission.

One-to-Many Communication:
A single order event needs to be broadcast to multiple, independent systems (order management, warehouse, and billing).

Let's analyze why Pub/Sub is the ideal fit and why the others are not:

Option B (Correct - Pub/Sub):
The Publish/Subscribe pattern is specifically designed for this scenario.

How it works:
The eCommerce website (the publisher) publishes an "order placed" event to a messaging topic on a bus (e.g., using Anypoint MQ, Solace, Kafka). The three backend systems (the subscribers) each have their own subscription to this topic. The messaging bus automatically delivers a copy of the event to all subscribed systems asynchronously.

Meets the Requirements:

High Volume & Performance:
Messaging systems are built to handle high-throughput event streams efficiently.

Near Real-Time:
Asynchronous messaging provides very low latency, easily meeting the 15-minute window.

Decoupling:
The website does not need to know about the specific backend systems. Adding a new system (e.g., a loyalty system) only requires creating a new subscription, without changing the publisher.

Option A (Incorrect - Managed File Transfer (MFT)): MFT is designed for secure, reliable, scheduled transfer of batch files. It is not suitable for real-time event notification.

Typical Use Case:
Transferring a daily batch of payroll data or a large inventory update file at the end of the day.

Why it fails here:
Processing "thousands of orders per hour" with MFT would require creating and transferring a file very frequently (e.g., every minute), which is an inefficient and complex approach compared to event-driven messaging. It would not guarantee processing within the 15-minute window in a straightforward manner.

Option C (Incorrect - Enterprise Data Warehouse (EDW)):
An EDW is a central repository of integrated data from various sources, used for historical reporting and business intelligence.

Typical Use Case:
Analyzing quarterly sales trends or customer purchasing behavior.

Why it fails here:
An EDW is not an integration technology for operational processes. It is a destination for data that has already been processed. Using it to trigger operational processes like warehouse picking or billing would be architecturally incorrect and far too slow.

Option D (Incorrect - Extract, Transform, Load (ETT)):
ETL is a process used to extract data from sources, transform it, and load it into a target database, most commonly a data warehouse (like an EDW).

Typical Use Case:
Pulling data from operational systems overnight, cleaning and aggregating it, and loading it into a data mart for reporting.

Why it fails here:
ETL is a batch-oriented, polling-based process. It is not an event-notification system. It is completely unsuited for the near real-time, event-driven requirements of this eCommerce scenario.

Reference / Key Concept

Integration Styles:
This question contrasts different integration styles. The correct solution uses the Messaging pattern, specifically the Event-Driven (Pub/Sub) variant.

Event-Driven Architecture (EDA):
The described use case is a classic example where an Event-Driven Architecture shines. An event (the placed order) triggers downstream actions in multiple, decoupled services.

In summary, only the Publish/Subscribe Messaging Bus provides the high-throughput, low-latency, and one-to-many communication pattern required to reliably notify multiple systems of an order event within the strict 15-minute timeframe.

Explanation
The core issue is high response time due to database query latency. The solution must focus on reducing the number of times the database is queried and/or improving the resources available to handle the load.

Option A (Correct):
Implementing an HTTP Caching Policy is a highly effective solution. This policy would be applied to the Master Look Up API's GET endpoints in API Manager.

How it works:
When a client (another API) makes a request, the HTTP Caching policy can return the response directly from the API Gateway's cache without the request ever reaching the actual Mule application (the 0.1 vCore workers). This dramatically reduces response time and load on the backend.

Why it's ideal for this use case:
The data is master data (static or slowly changing) and is accessed by many other APIs. Caching this data at the gateway level means that repetitive calls for the same key-value pair are served instantly. It prevents the database from being hit for every single client request, which is the primary cause of the latency.

Option D (Correct):
Upgrading the vCore size is a direct way to improve performance.

How it works:
A 0.1 vCore is the smallest, least powerful worker size in CloudHub. It has limited CPU and memory. Upgrading to a 0.2 vCore (or larger) provides more processing power

Why it helps:
While caching will reduce database calls, the application itself still needs to handle cache-miss scenarios and any non-GET operations. A larger vCore provides more resources for the Mule runtime to process requests concurrently, manage the object store, and execute database queries faster when they are necessary. It reduces the chance of the worker becoming a bottleneck under load.

Option B (Incorrect):
This option is a duplicate of Option A. The text is identical. In the exam, this would be an error, and you should only select one of the identical options if it's correct. In this case, A is the correct concept.

Option C (Incorrect):
Implementing locking on the Object Store is not only unnecessary but would worsen the performance issue.

Reason:
The Object Store v2 connector in Mule 4 is designed to be thread-safe and handle concurrent access internally. Manually adding synchronization (locking) would force requests to be processed sequentially instead of in parallel. This would create a massive bottleneck, increasing response times significantly, especially under high load. The object store is not the source of the latency; the database is.

Reference / Key Concept

API-Led Connectivity & Caching:
System APIs, like this Master Look Up API, are perfect candidates for caching strategies because they provide raw data from source systems.

API Manager Policies:
The HTTP Caching policy is a foundational policy for improving performance and reducing backend load.

CloudHub Worker Sizes:
Understanding that vCore size directly correlates to the CPU and memory resources available to an application is crucial for capacity planning. A 0.1 vCore worker is suitable for development or very low-volume scenarios but is often inadequate for high-use, foundational APIs in a production environment.

In summary, the best approach is a combination of reducing the load (with HTTP Caching) and increasing the capacity (with a larger worker) to handle the remaining load efficiently.

Explanation
The Java Message Service (JMS) is a standard API for message-oriented middleware. The key principle is that the JMS client (the Mule JMS connector) communicates directly with the JMS provider (the message broker, like ActiveMQ, TIBCO EMS, etc.).

Option C (Correct):
This is the fundamental nature of JMS. The JMS connector is a client that uses the JMS API. The actual network protocol used (e.g., TCP, HTTP, etc.) is determined by the JMS provider's client libraries and configuration. The Mule JMS connector can act as a producer (sending messages) and a consumer (receiving messages) using this provider-specific protocol.

Option A (Incorrect):
This describes a point-to-point communication model, not how JMS works. The JMS connector only needs to connect to the JMS provider (the message broker), not the ultimate recipient. The connector publishes a message to a queue or topic on the broker. The broker is then responsible for delivering the message to the appropriate recipient(s). The sender and receiver are decoupled.

Option B (Incorrect):
This reverses the connection direction. In the JMS model, the consumer (in this case, the Mule application using the JMS connector) initiates a connection to the JMS provider. The consumer either polls the broker for messages (for a Request-Reply operation) or establishes a persistent connection over which the broker can push messages (for a Listener source). The JMS provider does not initiate connections back to the consumers.

Option D (Incorrect):
This confuses JMS with AMQP. JMS is an API specification, while AMQP (Advanced Message Queuing Protocol) is a wire-level protocol.

JMS:
Requires a client library specific to the JMS provider (e.g., an ActiveMQ client library). It is not natively portable across different brokers without changing the client libraries.

AMQP:
Is a standard protocol. An AMQP client can connect to any AMQP-compliant broker (like RabbitMQ) using the standard AMQP protocol. The Mule JMS connector is for JMS, not AMQP. To use AMQP, you would use the AMQP connector.

Reference / Key Concept

JMS Architecture:
The communication is always between a JMS client and a JMS broker. Clients never communicate directly with each other.

JMS vs. AMQP:
It is critical to understand that JMS is a Java API standard, not a protocol. The underlying network protocol is implementation-specific. AMQP is an open standard protocol that is language-agnostic. They are distinct technologies.

Explanation
The key constraints and requirements are:

Very Large Files:

Up to 5GB.

Limited Resources:
A single 0.2 vCore worker, which has very little memory.

Processing Needs:
The file must be read and then sent to three different downstream SFTP locations, likely requiring the content to be accessed multiple times.

Let's analyze the streaming options:
Option D (Correct - File-stored repeatable stream): This is the ideal and most performant choice for this scenario.

How it works:
Instead of loading the entire file content into the worker's limited RAM, Mule 4 automatically stores the streamed content in a temporary file on the worker's disk.

Why it's perfect for this use case:

Handles Large Files:
Disk space is much more abundant and cheaper than memory on a CloudHub worker. A 5GB file can be easily handled without risking an OutOfMemoryError.

Repeatable:
Because the content is stored on disk, the stream can be "replayed." This is essential for sending the same file to three different SFTP locations. A non-repeatable stream can only be consumed once.

Idiomatic:
This is the default and recommended behavior in Mule 4 for handling large payloads that need to be accessed multiple times within a flow. It provides the best balance of performance and reliability for this use case.

Option A (Incorrect - In-memory repeatable stream): This would load the entire file content into the JVM's heap memory.

Why it fails:
A 0.2 vCore worker has very little memory. Attempting to load a 5GB file into memory would almost certainly cause the application to crash with an OutOfMemoryError. This is the most dangerous option for this specific scenario.

Option B (Incorrect - File-stored non-repeatable stream): While storing the content on disk solves the memory issue, a non-repeatable stream is a problem.

Why it fails:
The use case requires sending the file to three different locations. A non-repeatable stream can only be read once. After the first SFTP operation consumes the stream, the subsequent two operations would have nothing to send. This option is suitable for large payloads that are processed sequentially in a single pass, but not when the content needs to be reused.

Option C (Incorrect - In-memory non-repeatable stream): This is the worst possible combination for this use case.

Why it fails:
It has the memory constraint problem of Option A (risk of OutOfMemoryError with a 5GB file) and the single-use limitation of Option B (cannot send to three destinations).

Reference / Key Concept

Mule 4 Streaming:
A core feature of Mule 4 is its ability to stream payloads without holding them entirely in memory. The key is to choose the right streaming strategy based on payload size and the need for repeatability.

Repeatable vs. Non-Repeatable Streams:

Repeatable:
Can be consumed multiple times. Required if you need to use the same payload data in multiple places in your flow (e.g., logging, transforming, and sending to multiple endpoints). This often incurs a performance overhead as data is buffered (in memory or to disk).

Non-Repeatable:
Can only be consumed once. More efficient for large payloads that are processed in a single, sequential pass.

Default Behavior:
For large payloads, Mule 4 will automatically use a file-based repeatable stream when it detects the stream needs to be repeated, making Option D the idiomatic choice. In summary, for processing very large files that must be used multiple times on a memory-constrained worker, a file-stored repeatable stream is the only correct and sustainable choice.
